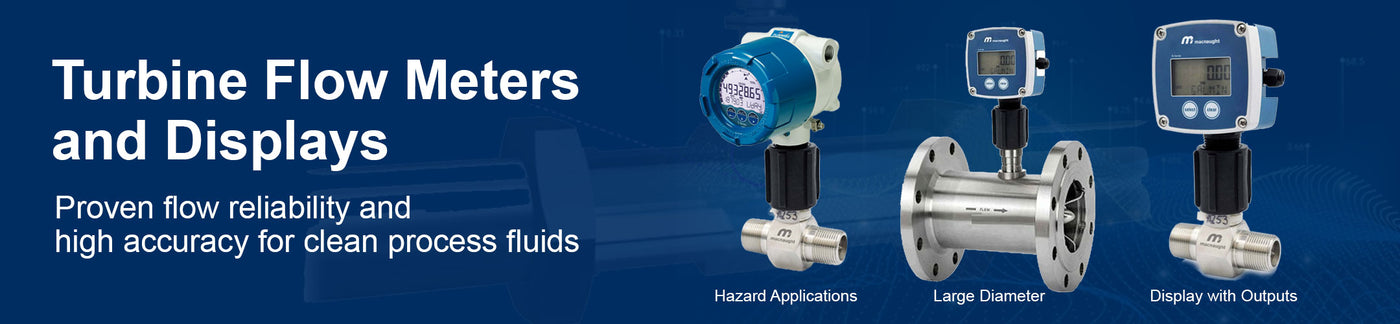

Turbine Flow Meters

Macnaught USA offers Industrial Grade Liquid Turbine Flow Meters for a wide range of fluid measurement applications.

MT Series Turbine Flow Meters provide proven flow reliability and high accuracy for clean process fluids. All MT Series Turbine Flow Meters are manufactured in the USA and are individually calibrated with a tagged NIST Traceable K-Factor attached to each meter. Cost Effective Industrial Flow Measurement.

General industrial and Hazardous Area meters are available. Large Stock of Turbine Meters, Digital Output Options, Integral and Remote Displays, and Y Strainers available for Immediate Shipment!

Turbine Flow Meter Collection

TURBINE FLOW METER QUICK SPEC VIEW

  • Rated to 5,000 PSI ( 2 inches and Below )
  • Temperature Ranges: -100F to 300F Standard ( higher temp options available )
  • In Stock Sizes ½” thru 4” .75 GPM to 1200+ GPM Ships Same Day
  • Victaulic Ends on 3” thru 10” Meters Rated to 800 PSI
  • Media: Clean Liquids Only up to 100 cPs
  • MOC: 316 SS Body / 416 SS Rotors
  • Stocked Connections: MNPT ( High Flow 2” is FNPT ) Flanged Options available
  • Accuracy: 1% over Flow Range
  • Repeatability: .1% over Flow Range
  • Flow Conditioning / Straight Pipe Requirements : 20 Diameters Upstream / 5 Diameters Downstream
  • Meter Outputs: Pulse ( Sine and Square ) 4-20mA, 0-5VDC, 0-10VDC
  • Display Outputs: 4-20mA, Pulse, Modbus, HART
  • ISO 9001 and CRN Certified


SUITABLE FLUIDS

Frac Water • Process Water • DI Water • Fuels of all types • All Oils below 100 cPs • All Heat Exchange Fluids • Liquid Hydrogen and Nitrogen • Clean Hazard Zone ExD C1D1 and Intrinsically Safe • Other Low Viscosity Clean Fluids compatible with Stainless Steel

Macnaught is a leading global flow meter manufacturer and has been since 1964. Macnaught USA delivers quotes within the hour with full documentation. Large stock on hand for immediate delivery!
