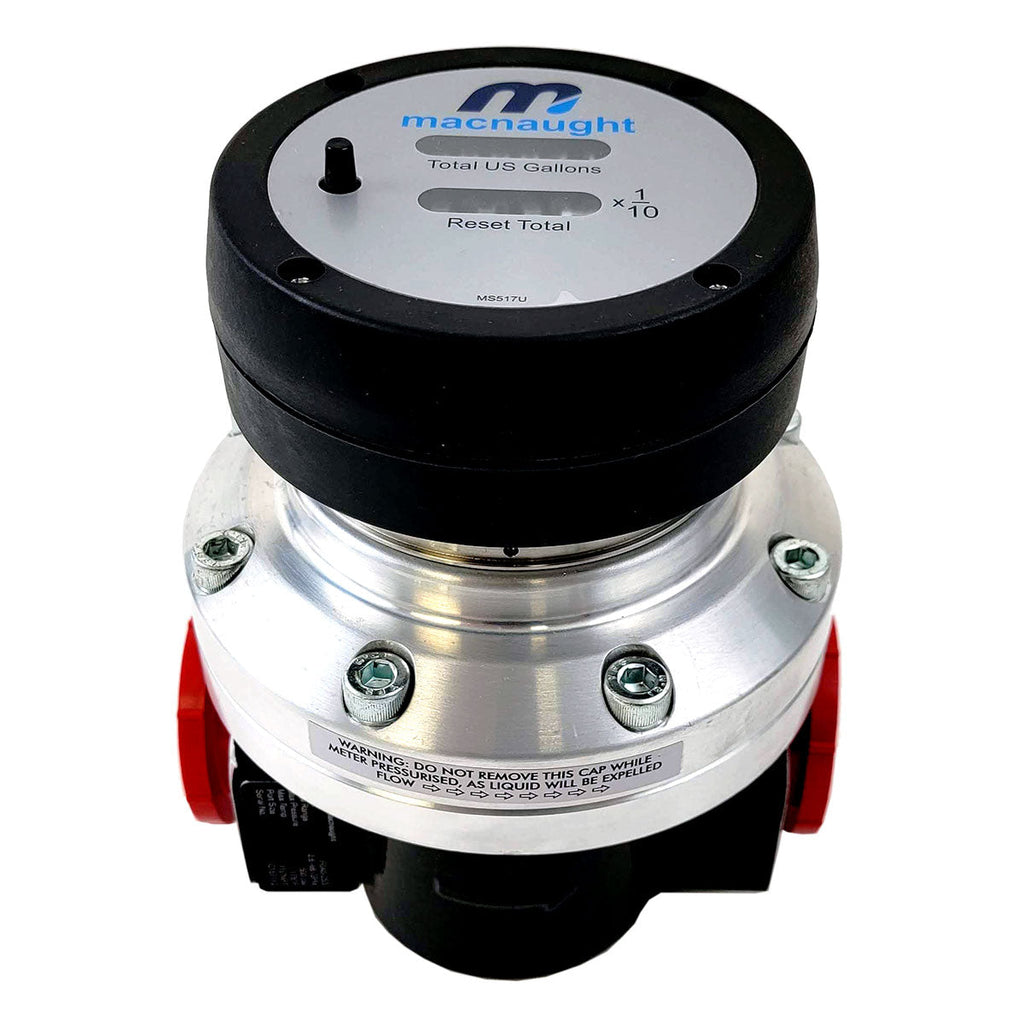

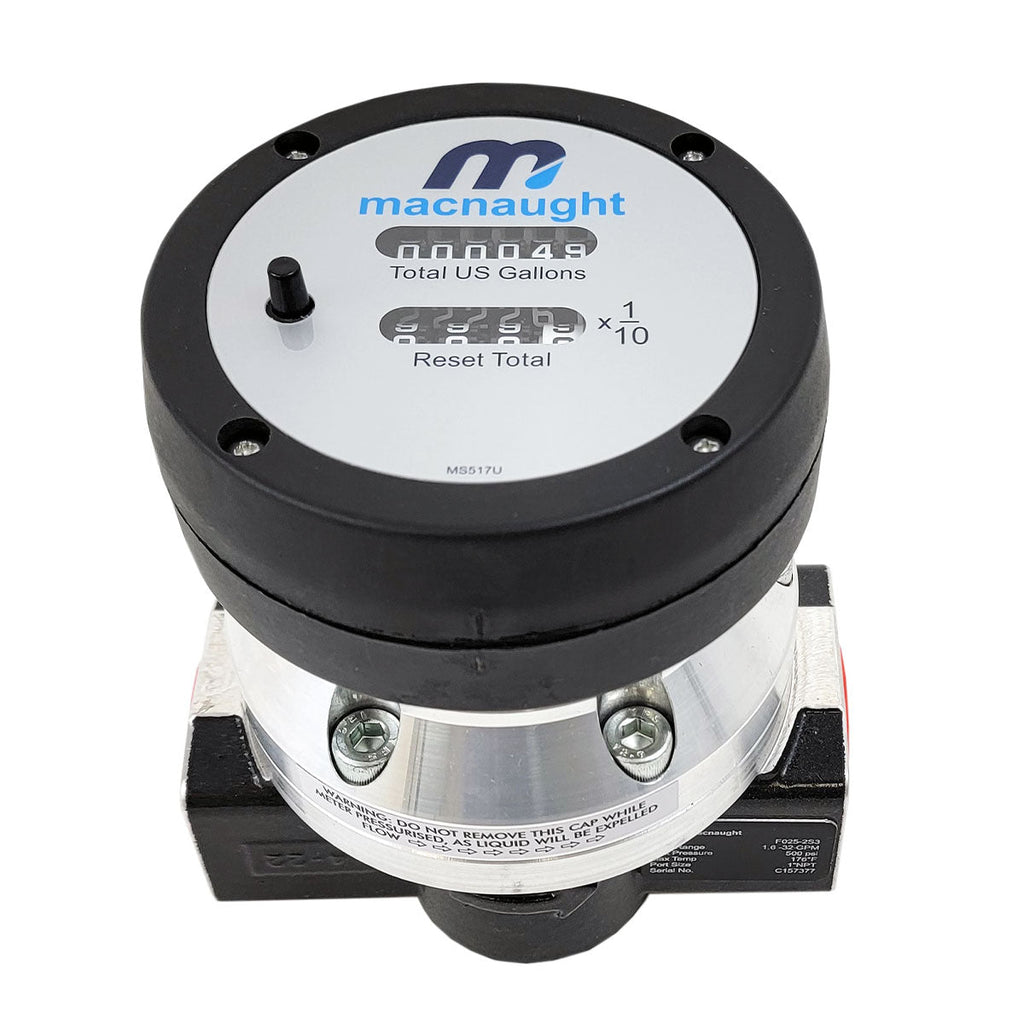

Macnaught M Series Mechanical Register Flow Meter
Macnaught M Series Mechanical Register Flow Meters are Non-Powered Industrial Grade Mechanical Display totalizing flow devices. Well suited for registering totals in most fluid applications. Designed for clean process fluid, this meter is not for measuring air or liquids laden with solids.
This Macnaught meter class has decades of industrial experience with thousands in service, many operating in perfect condition for over 30 years.
ALL M SERIES MECHANICAL METERS PROVIDE A STANDARD 1% ACCURACY with .03% Repeatability of Flow.

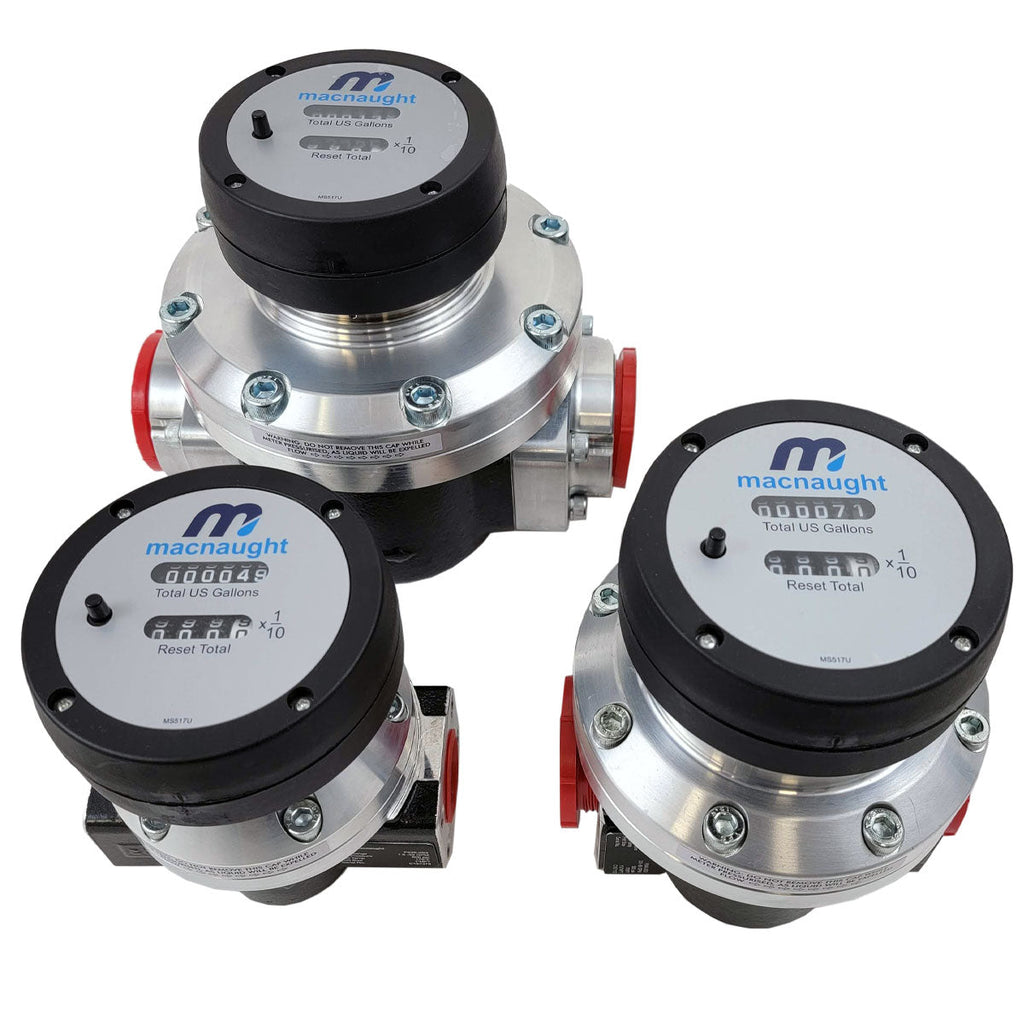

- ½”, 1”, 1,5” and 2” stocked sizes
- Designed for Precise Volumetric Clean Process Fluid Totalizing Measurement
- No Flow Conditioning – put the meter where you need it
- Large Stock of Meter and Display Inventory including Hazard Classification Meters
- Immediate response to Flow Meter Inquires
Receive an Immediate Flow Meter Proposal or Call our Meter Hotline - (813) 896-2710
Fluid Categories Well Suited for MX Oval Gear Flow Meters
Fuels • Oils • Solvents • DEF/ADBLUE • Greases • Lubricants • Fuel Additives • Glycols Polyols • Isocyanates • Asphalt Emulsions • Sealers • Epoxies • Adhesives • DI Water General Water • Acids • Bases • Inks • Chemical Additives • All Clean Process Fluids
Flow Totalizing Applications Well Suited for Macnaught Oval Gear Flow Meters
| Bio Diesel Blending & Production |
Lubricant Blending & Dispensing |
Glycols Process Measurement |
| Diesel Fuel Additive Blending |
Hydraulic Fluid Measurement |
Sealants & Adhesive Manufacturing |
| Fuel Measurement Basic |
Test Stands | Epoxy / Glue Production |
| Fuel Measurement Advanced |
Polyurethane Foam Ratio Blending |
Polymer Production & Measurement |
| Ethanol Blends | Agriculture Chemical Blending & Dispensing |
High Viscosity Fluid Measurement |
| Heating Oil Measurement |
Ink Blending | DI and General Water Loop Measurement |
| Boiler Fuel Measurement |
Solvent Manufacturing, Blending, Dispensing |
Additive Injection & Blending |
| Bunker & Vessel Fuel Measurement |
Paint & Coating Manufacturing |
Acids & Bases Measurement |
Receive an Immediate Flow Meter Proposal or Call our Meter Hotline - (813) 896-2710
Principle of Operation
The measuring element of an oval gear meter consists of two high-precision splined oval-shaped gears (Rotors).
The gears are driven by the flow of the media and “mesh” together. In the presence of flow, exact known defined volumes of fluid are swept through the meter per each rotor rotation.
As flow increases, so does the rotational speed of the Rotors.
The number of revolutions is a precise highly accurate measure of the fluid that has passed through the meter. Regardless of viscosity, pressure, or temperature.
Each “active” Rotor rotation creates a pulse and is detected by a sensor. Each meter is individually calibrated per ISO 17025 standards to .1% accuracy
METER FLOW
Mechanical Meter Quick Specs
Macnaught Mechanical Flow Meters and Displays.
- No Flow Conditioning Required
- Put the Meter where you need it
- Heavy Duty Industrial Grade Design
- Compact Size
- Suitable for Low and High Viscosity Fluids
Macnaught MX Ex ia Quick Specifications:
|
Model |
Size Connection |
Flow Range |
Max Pressure |
Max Temp |
Body |
| F012 | ½” | .5-12 GPM | 500 PSI | 176F | AL/PPA/Viton* |
| M012 | ½” | .5-12 GPM | 500 PSI | 176F | SS/PPS*-SS/FEP |
| F025 | 1” | 1.6-42 GPM | 500 PSI | 176F | AL/PPS/Viton* |
| S025 | 1” |
1.6-42 GPM | 500 PSI | 176F | AL/SS/FEP |
| M025 | 1” | 1.6-42 GPM | 500 PSI | 176F | SS/PPS-SS/FEP |
| F040 | 1.5" |
2.6-92 GPM | 500 PSI | 176F | AL/PPS/Viton* |
| S040 | 1.5" |
2.6-92 GPM | 500 PSI | 176F | AL/SS/FEP |
| M040 | 1.5” | 2.6-92 GPM | 500 PSI | 176F | SS/PPS-SS/FEP |
| F050 | 2" | 4-200 GPM | 500 PSI | 176F | AL/PPS/Viton* |
| S050 | 2" | 4-200 GPM | 500 PSI | 176F | AL/SS/FEP |
| M050 | 2" | 4-200 GPM | 500 PSI | 176F | SS/PPS-SS/FEP |
Stocked Mechanical Meters indicated by * and register in GPM. LPM registration is available.
- 1% Accurate with .03% Repeatability
- All bodes are cast Aluminum or Stainless Steel

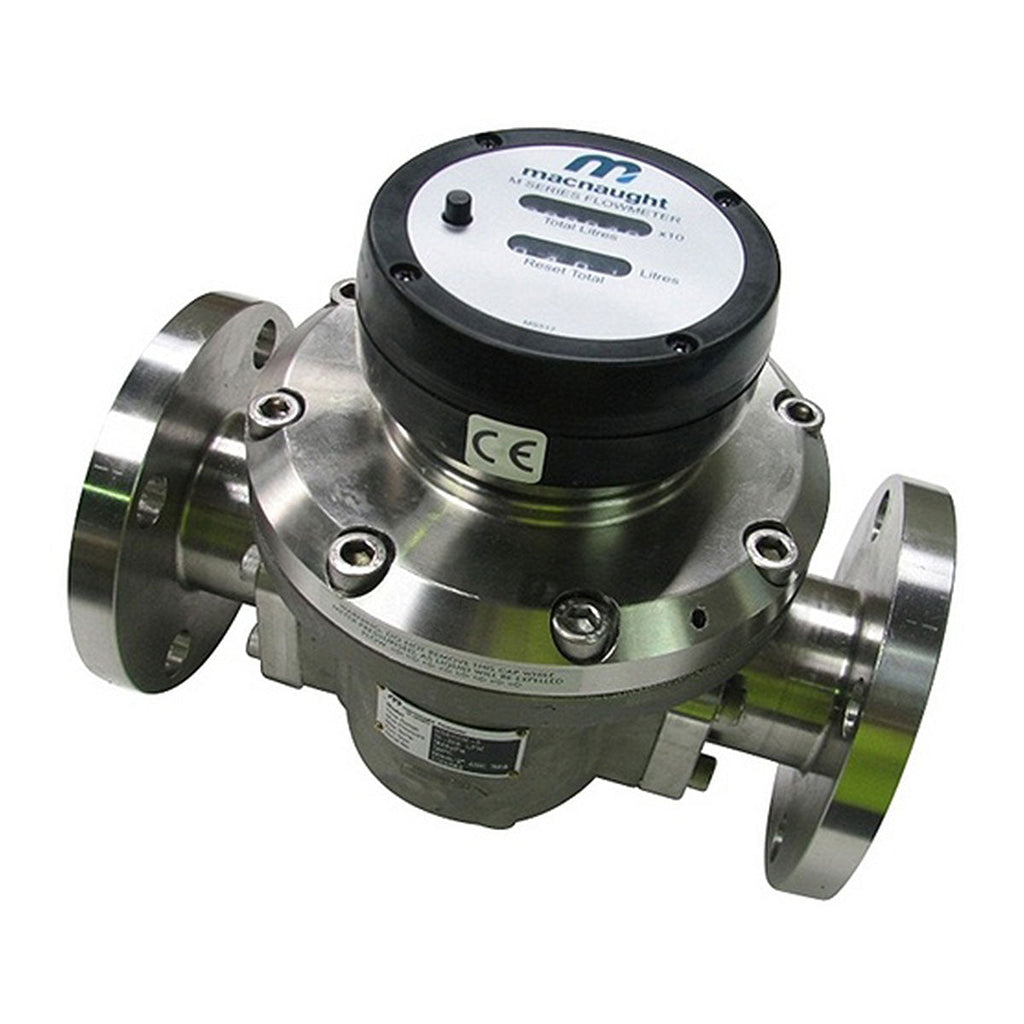

- All stock connections are FNPT. Flanges options available on 1”, 1.5”, and 2” Models.
- All Macnaught USA Mechanical Meters use the Standard Mechanical Display
- Macnaught Mechanical Register meters cannot exceed 176F
Call our Meter Hotline (813) 896-2710 or use the RFQ Form Link Below
Mechanical Meter Downloads
Macnaught ½” Mechanical Register Manual > Download PDF
Macnaught 1” Mechanical Register Manual > Download PDF
Macnaught 1.5” Mechanical Register Manual > Download PDF
Macnaught 2” Mechanical Register Manual > Download PDF
Macnaught USA can review your Mechanical Meter application and determine best fit. Contact our Meter Hotline at (813) 896-2710
Or Complete our Meter RFQ form for an immediate proposal
