Macnaught FCM Flow Meter
Macnaught FCM Flow Meters are special-purpose flow devices designed to provide .1% Accuracy in Fuel Consumption Meter Applications.
FCM Meters thrive in harsh environments and work very well in heavy vibration, swirling dust, flying mud, heavy rain or other excessive mobile or stationary conditions. This meter class works with clean filtered fluids only and does not measure gas or liquids with solids present.

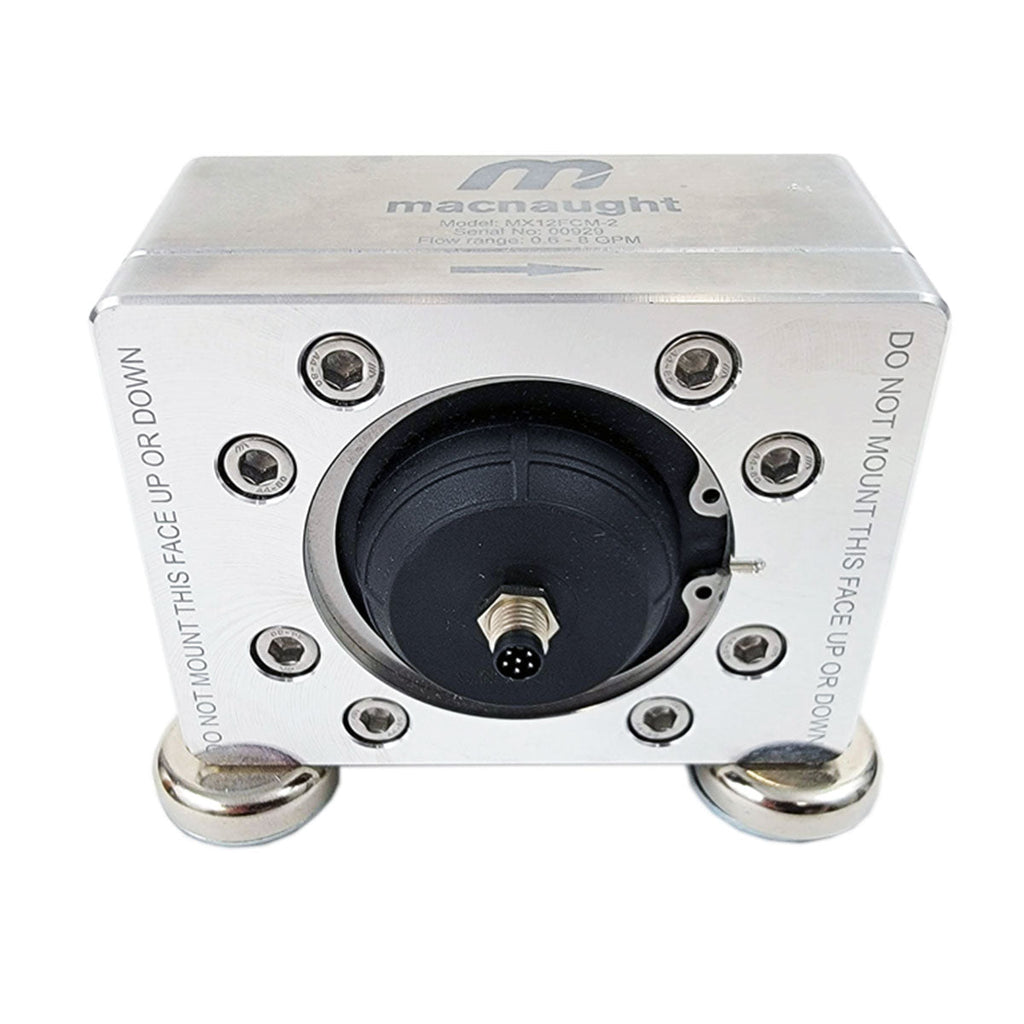

The unique magnetic attachment method does away with mechanical fastening and improves substrate mating while significantly reducing connection stress.
Our built-in temperature sensor allows for Diesel Fuel temperature compensation capabilities for maximum accuracy purposes.
Two flow ranges are offered that cover the majority of diesel engine models:
MX12FCM .5-8 GPM
MX25FCM 1.6-9.5 GPM
Minimal Pressure Drop, typically .5 PSI to 2 PSI

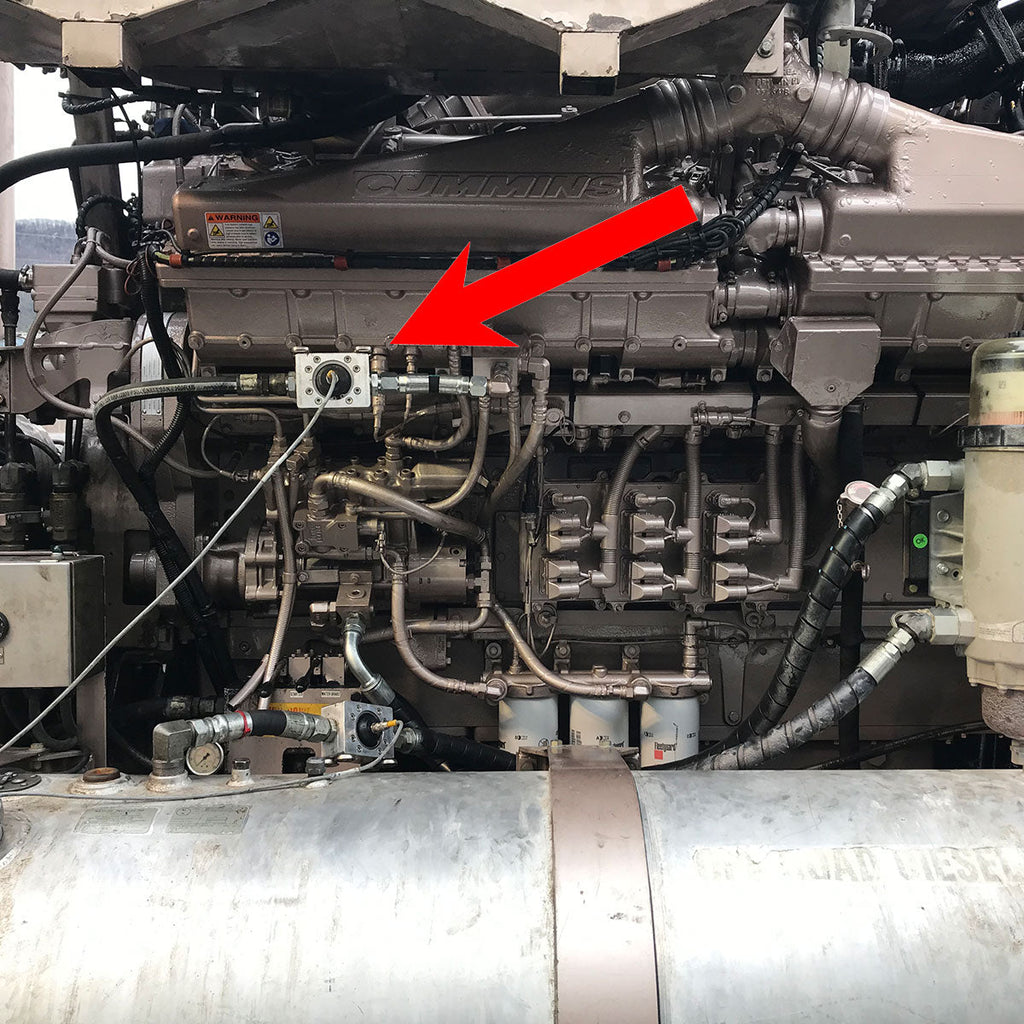

The FCM Series is designed for Diesel Fuels of all types and is used in numerous fuel measurement industries including:
- Fracking Engines
- Drilling Platforms – Generator Fuel Measurement

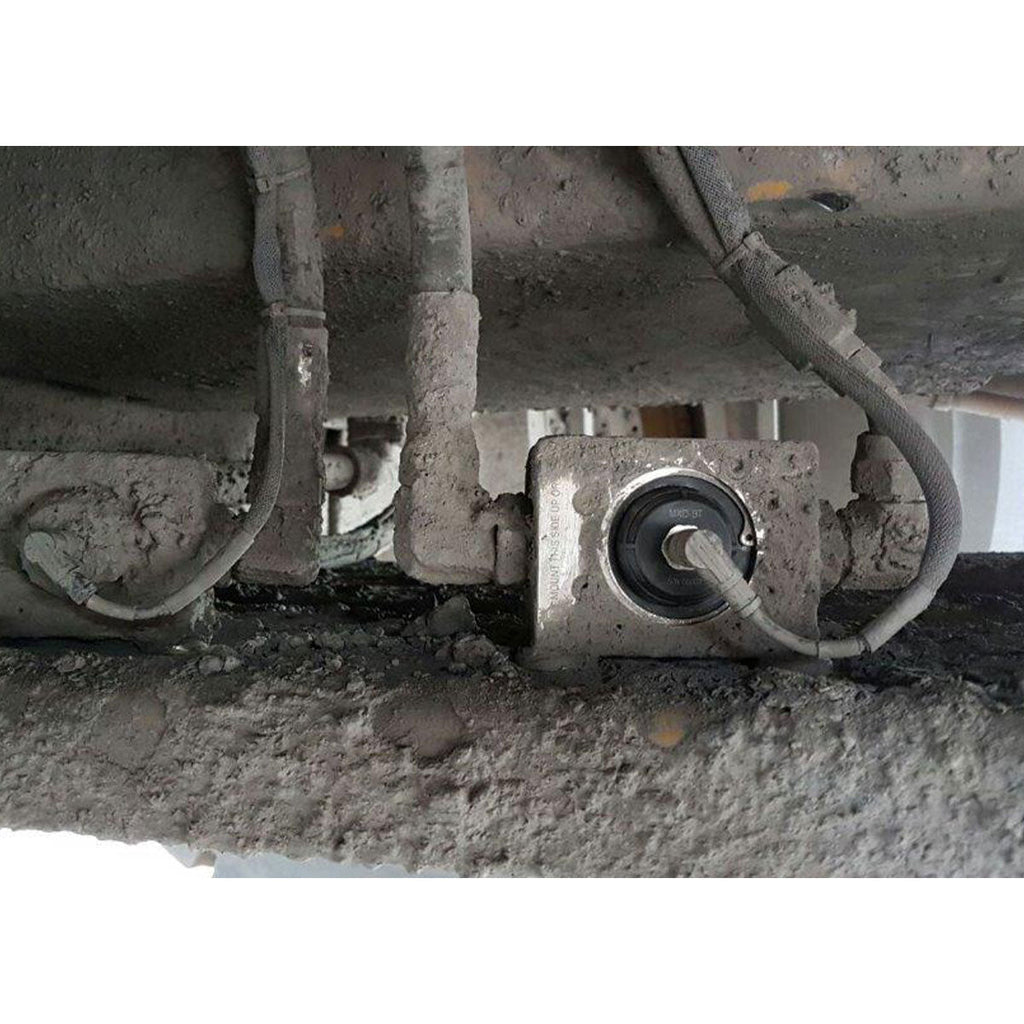

- Mining Trucks
- Logging Equipment

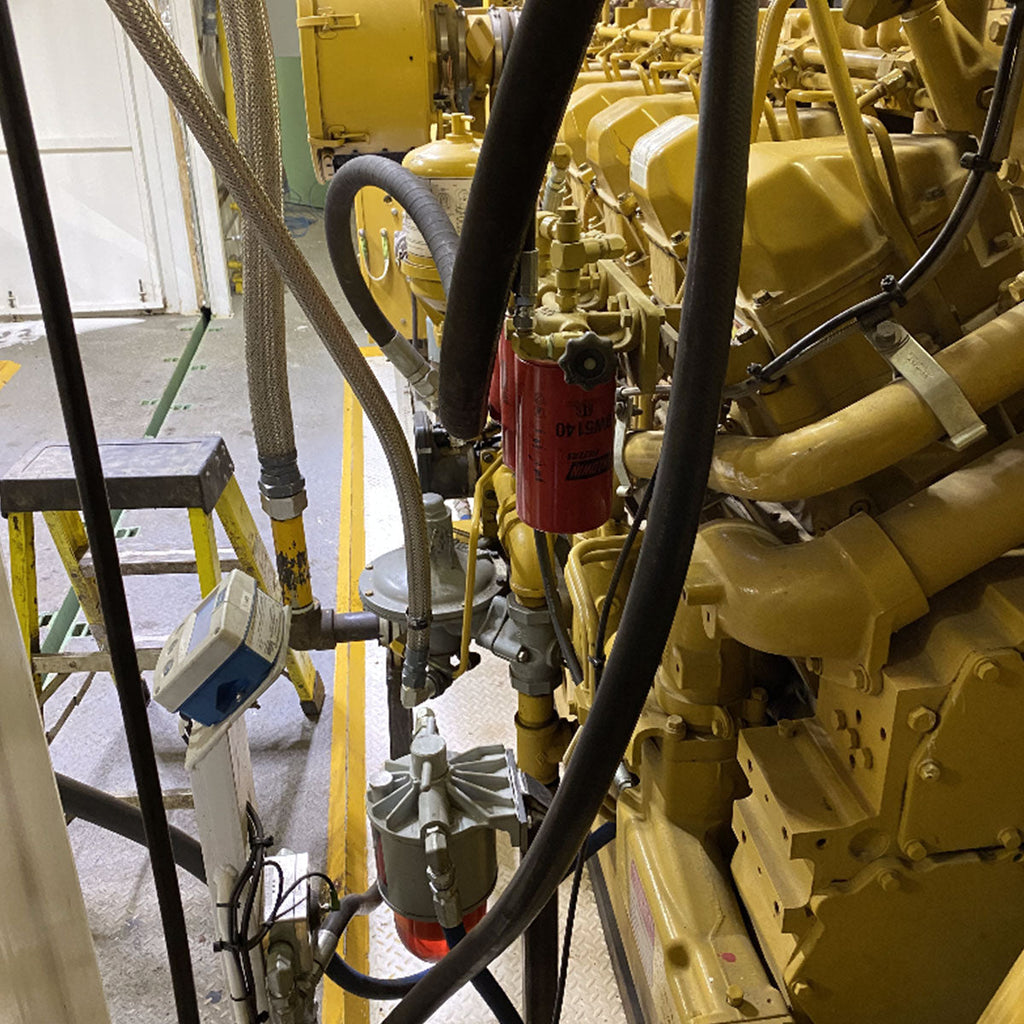

- Gen-Set Fleets
Receive an Immediate Flow Meter Proposal or Call our Meter Hotline - (813) 896-2710
Principle of Operation
The measuring element of an oval gear meter consists of two high-precision splined oval-shaped gears (Rotors).
The gears are driven by the flow of the media and “mesh” together. In the presence of flow, exact known defined volumes of fluid are swept through the meter per each rotor rotation.
As flow increases, so does the rotational speed of the Rotors.
The number of revolutions is a precise highly accurate measure of the fluid that has passed through the meter. Regardless of viscosity, pressure, or temperature.
Each “active” Rotor rotation creates a pulse and is detected by a sensor. Each meter is individually calibrated per ISO 17025 standards to 0.1% accuracy
METER FLOW
FCM Meter Quick Specs
The Macnaught FCM Oval Gear Flow Meter Includes:
- Very high accuracy of 0.1% of flow
- Innovative Magnet Mounting design, no mechanical attachment required
- Two sizes covering small to large Engine Fuel Measurement
- No Flow conditioning required, perfect for tight installs

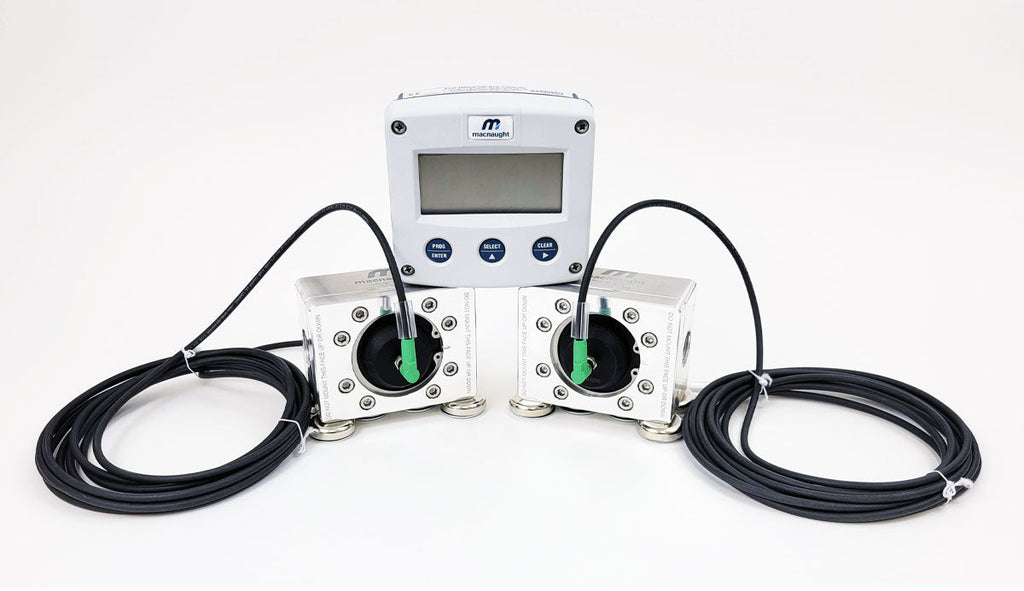

- Optional Fuel Computer provides net fuel consumption with analog and pulse outputs
Macnaught FCM Quick Specifications:
|
Model |
Size Connection |
Flow Range |
Max Pressure |
Max Temp Rating |
Accuracy |
| MX12FCM | ¾” FNPT | .5-8 GPM | 150 PSI | -40F-176F | .1% |
| MX25FCM |
1” | 1.6-9.5 GPM | 150 PSI | -40F-176F | .1% |
Notes:
All FCM Meters come with 7 point Calibration
FCM-MX Meter come with single point Calibration
Pulser is fully potted and comes with 2 Hall Effect Outputs ( 1 Active and 1 Spare )
Pulser Connection is DIN M8 Pin Right Angle with 5 Meters of 24 AWG Cable Length and is IP67 Rated
FCM Meter MOC is only available in AL Body / PPS Rotors / Viton Body Seal
F127 Flow Computer requires 8-24 VDC
Outputs are (1) 4-20mA and (2) OC Pulse Outputs
Temp Rating is -40F to 176F6F
Optional RS485 Communication Available
Call our Meter Hotline (813) 896-2710 or use the RFQ Form Link Below
FCM Meter Downloads
FCM Instruction Manual > Download PDF
F127 Datasheet > Download PDF
F127 Instruction Manual > Download PDF
FCM Meter to F127 Wiring Instructions > Download PDF
Macnaught FCM Flow Meters > Overview
Macnaught USA can review your FCM Meter application and determine best fit. Contact our Meter Hotline at (813) 896-2710
Or Complete our Meter RFQ form for an immediate proposal
