Macnaught BOP20HV 5 Gallon Universal Oil Stem Kit - PN# BP20X-UNA

THIS STEM KIT IS COMPATIBLE WITH OIL, HYDRAULIC FLUIDS, ATF & COOLANTS

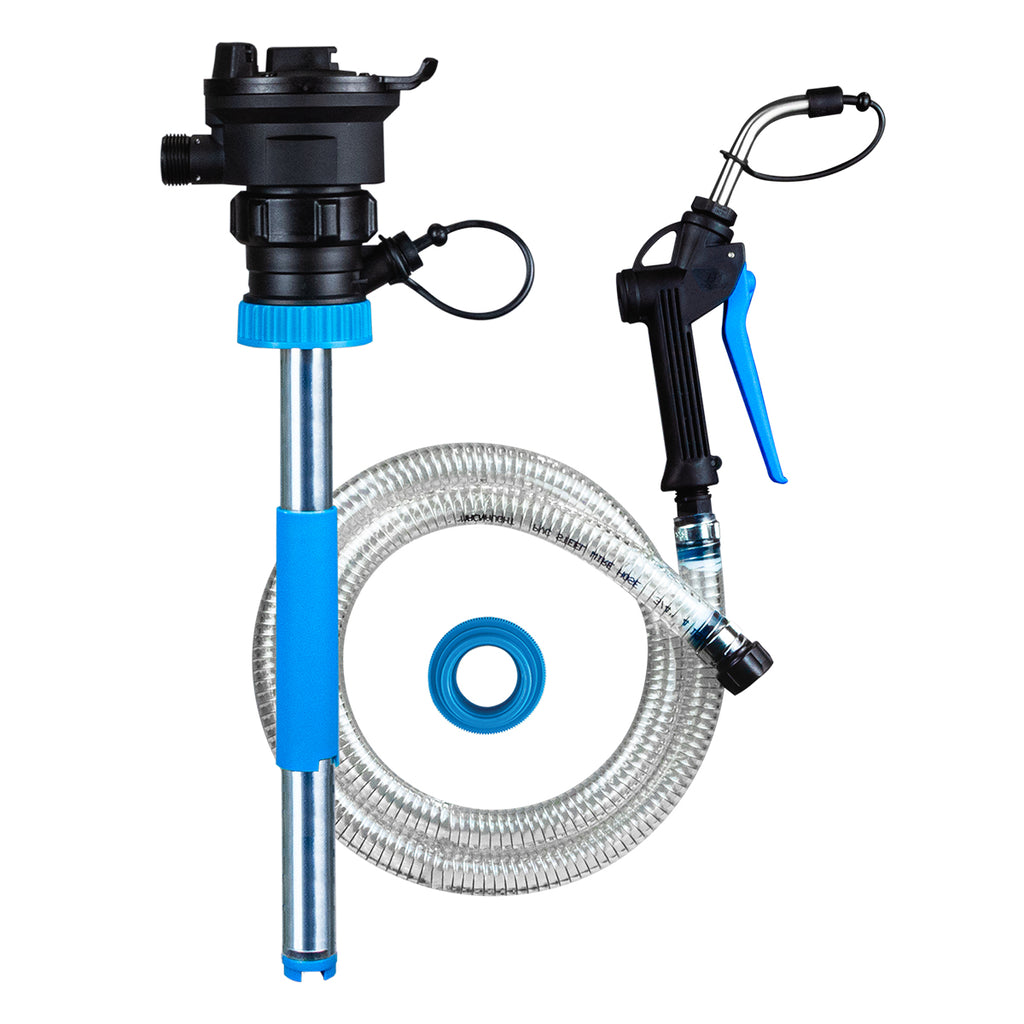

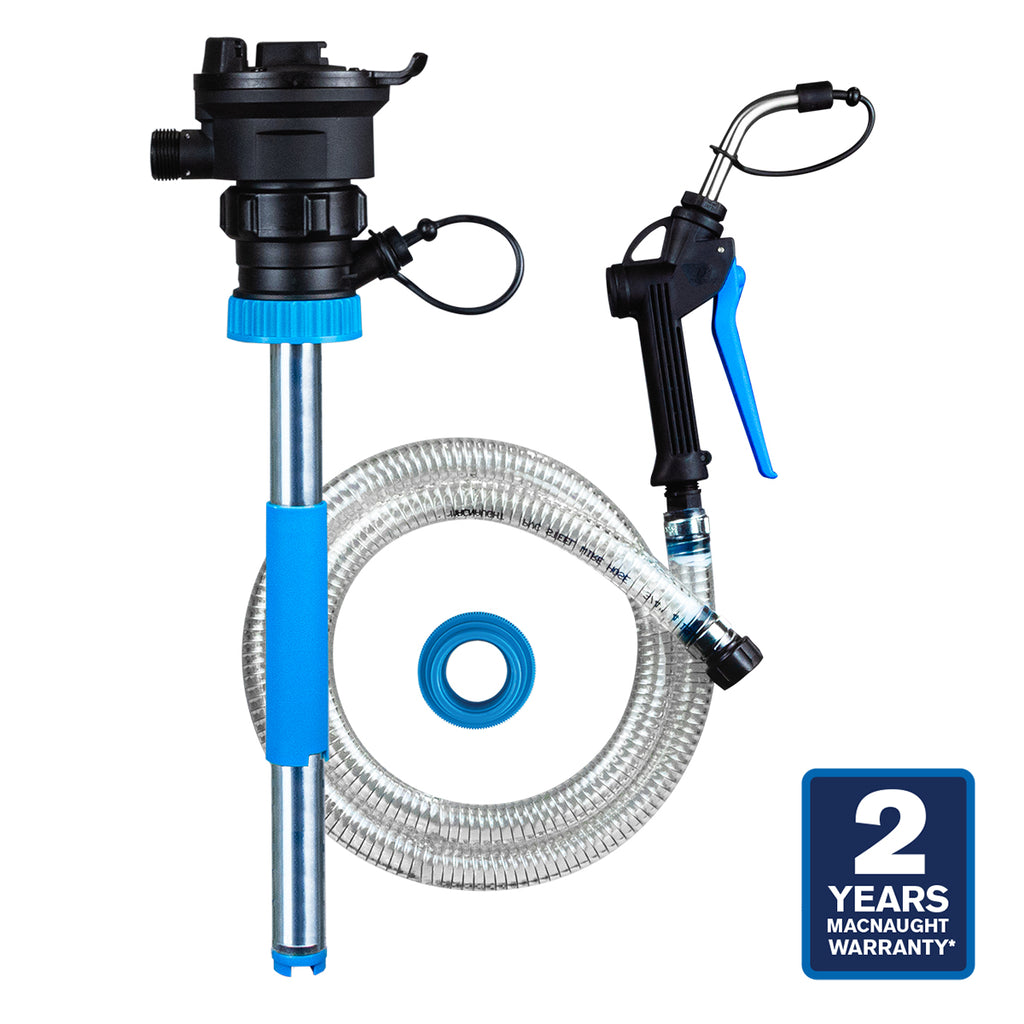

This BOP20HV Stem comes complete with Stem and Pail Adapter, 5 FT of Delivery Hose, and an On-demand Nozzle. Used only with 5 Gallon Pails, typically used with an existing BOP Oil Pump Kit for differing oil – eliminates cross-contamination.

Simply click the Powerhead ( provided separately ) on the new Stem – makes transferring different grades of oil simple and fast.

INCLUDES 2 YEAR WARRANTY!

NEWLY ENHANCED PUMP STEM

*pails or containers not included

INCLUDES 2 YEAR WARRANTY!

Macnaught BP20S-OHU Specifications

Macnaught BP20X-UNA Features and Benefits

• On Demand control nozzle
• Portable Powerhead (Powers multiple stems)
• Sealed wetted parts
• Separate Powerhead – multiple oils with one Powerhead 18V rechargeable 2.0Ah battery delivers up to 40GAL
• Oils up to SAE140 / ISO680, ATF & Coolants
• Flow rates up to 1.5+GPM
• No more pumping by hand to reduce fatigue
• No air required, eliminates costly air pumps
• No funnels needed, reducing spillage

Overview: Link
Operations Manual: PDF
Data Sheet: PDF

How To Order

The BP20X-OHA Stem Kit does not come with a Powerhead, Battery, or Charger.

BOP20 5-gallon users purchase an Oil Pump Kit ( PN# BP20S-UNU ) and purchase the Stem Kit separately for differing oils, coolant or ATF.

The Powerhead from the Oil Pump Kit clicks on and off all BOP Stems, making this system very cost-effective and flexible.

Caution: If you do not have an existing Oil Pump Kit with Powerhead, Battery & Charger, the Stem Kit will not work.

Frequently Asked Questions

Q: Can I use a Non-Macnaught 18V Battery on the BOP?
A: No, BOP requires a Macnaught Battery

Q: Can I store the Powerhead outside?
A: No, the BOP Powerhead is not rated for rain conditions. Store the Powerhead in a dry location. Caution: Do not drop the Powerhead- damage can occur at any distance drop.

Q: Can I pump diesel with BOP?

A: No, only the rated fluids - Hydraulic or Engine Oils up to 140W/ISO680, Coolant & ATF.

Fuels of any type are very dangerous to pump and will damage the BOP seals. Only Oils, Coolant or ATF. No other fluids are warranted.

Q: Can BOP be used for Marine Outboard fills?

A: Yes, we have many Marine Mechanics using BOP for this application. You will need to modify the Nozzle Tip to accommodate the type of Outboard connection you will use

Q: Is BOP 3A or Sanitary compliant?

A: No, BOP can only be used with rated fluids.

Q: Does BOP work with 2.5 Gallon Jugs?

A: Yes, BOP20 does fit

Q: Will BOP fit into my Oil Safe or other containers?

Yes, BOP20 fits perfectly with 5-liter and 10 Liter Oils Safe Containers with their Utility Lid.

The BOP20 also fits Des Case 7-Liter and 10-Liter and Trico 3-gallon and 4-gallon containers with Pump Lids.

Q: Can I run the BOP dry?

A: No, do not allow the BOP to run dry. Impeller damage will occur.

Q: Is the BOP serviceable?

A: Yes, we have Impeller Kits in stock.

Q: Do you offer a meter with the BOP?

A: Yes – easy to install and operate > BOP Meter

Q: Can I use an Oil Control Gun with the BOP?

A: No, non-drip nozzles will not operate correctly with the BOP.

Use only the BOP Inline Digital Meter PN# IM012EB-01

Q: My 5 Gallon Pail is an odd size, will the BOP20 work?

A: Yes, the adapter fits most pail bungs and the BOP comes with an adjustable sleeve to evacuate fluids on taller pails.

Q: My BOP is running slower at cold temperatures – why?

A: Oils thicken with lower temperatures, and cooler weather will slow the BOP flow rate. We recommend keeping oil containers as warm as possible indoors or with heating blanket wrap systems. BOP works best at 60F plus.

Q: My BOP stopped Pumping. The battery is charged, Powerhead light is on – what do I do?

A: Inspect the Impeller for Damage or Plugging > BOP Manual
