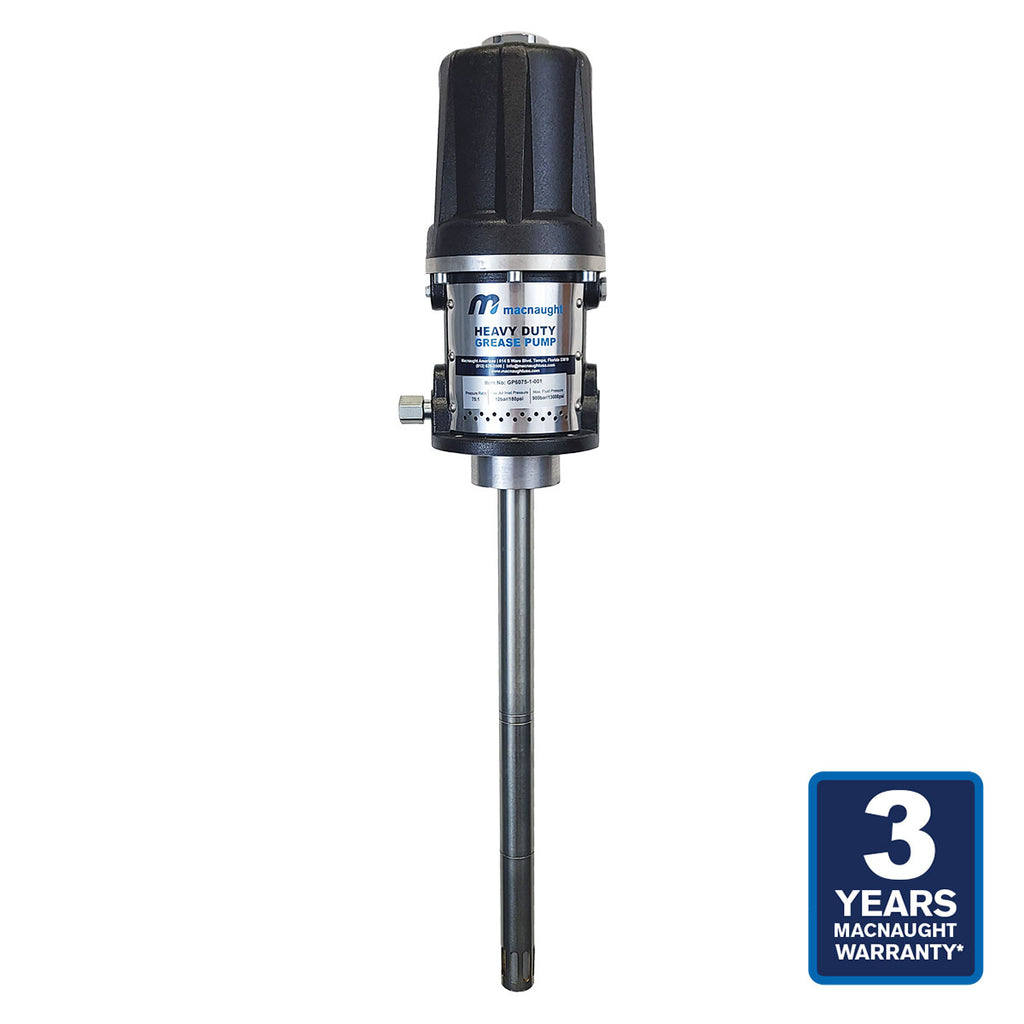

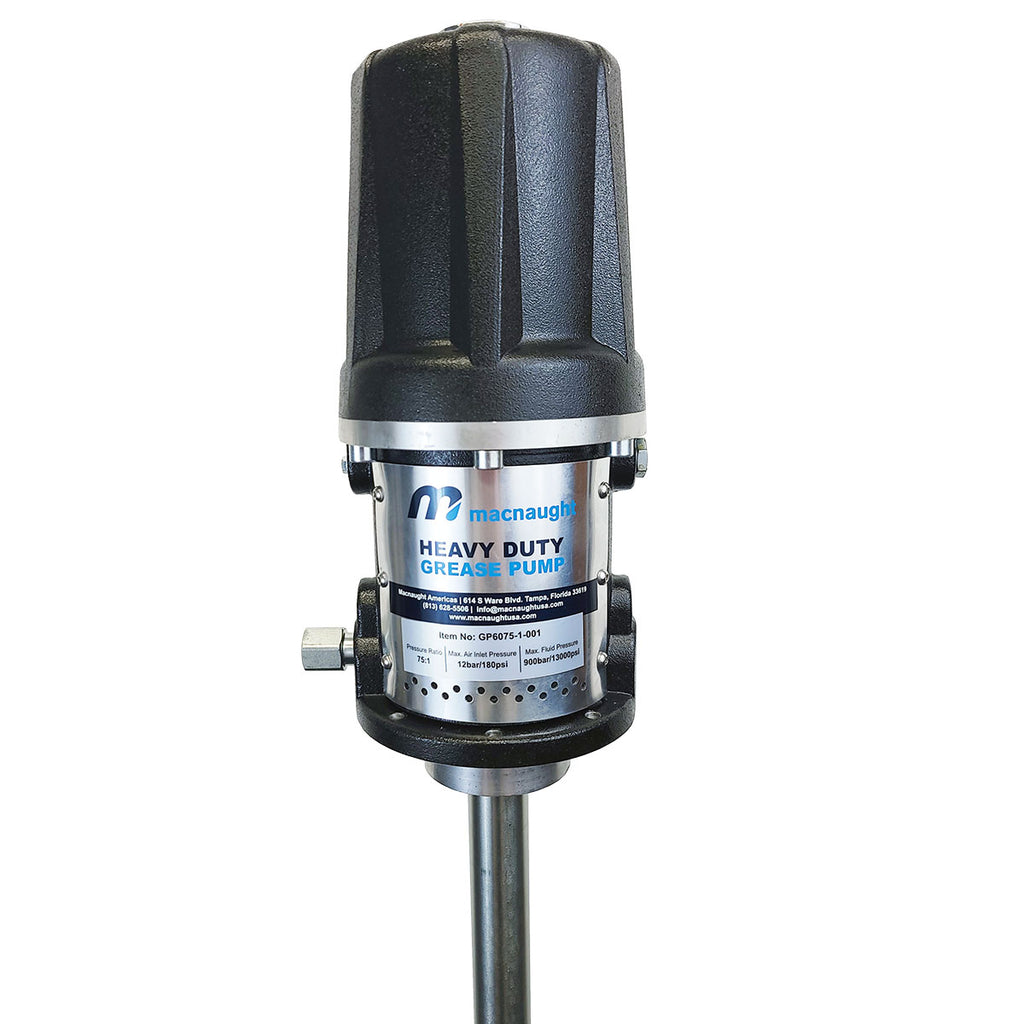

M3 75:1 Bare Grease Pump for 5 to 6.5 Gallon Pails / 35 to 60 lb Containers
Macnaught’s 75:1 Heavy Duty Grease Pump was designed for high pressure and high volume grease dispensing.
Well suited for smaller container high grease output applications. Rugged design, easy to operate and built to last.
INCLUDES 3 YEAR WARRANTY!
Note: This is a bare pump and does not come with follower, cover, hose or booster gun
Instruction Manual: PDF
M3 Blue Series Bare Grease Pump Specifications:
| Model number |
GP6075-1-001 |
| Container Sizes |
Fits all common 5 Gallon Pails, 6.5 Gallon Pails and 35 to 60 lb grease containers |
| Operating PSI |
70-150 PSI |
| Grease Flow |
3.5 Pounds Per minute |
| Motor Diameter |
3" |
| CFM |
11.7 CFM @ 115 PSI |
| Maximum Delivery Pressure |
13,000 PSI |
| Air Inlet |
¼ inch fnpt |
| Outlet Port |
3/8 inch fnpt |
| Suction Tube Diameter |
1-1/4 inch |
Suction Tube Length
|
19 inch |
| Weight |
19.4 lbs |
