Macnaught’s 3:1 High Flow Mobile Oil Dispensing Kit is suitable for dispensing oil at medium/high viscosity for mobile installations and fixed system at medium to lengthy distances. For 48 - 58 gallon drums. Features Heavy duty air operated oil pump. Easy to use Digital Control Gun that dispenses in gallons, quarts, pints and liters. Multi-drum trolley ensures high mobility and high efficiency. Supplied with adjustable 2 in. bung adapter.
FULL 3 YEAR WARRANTY!

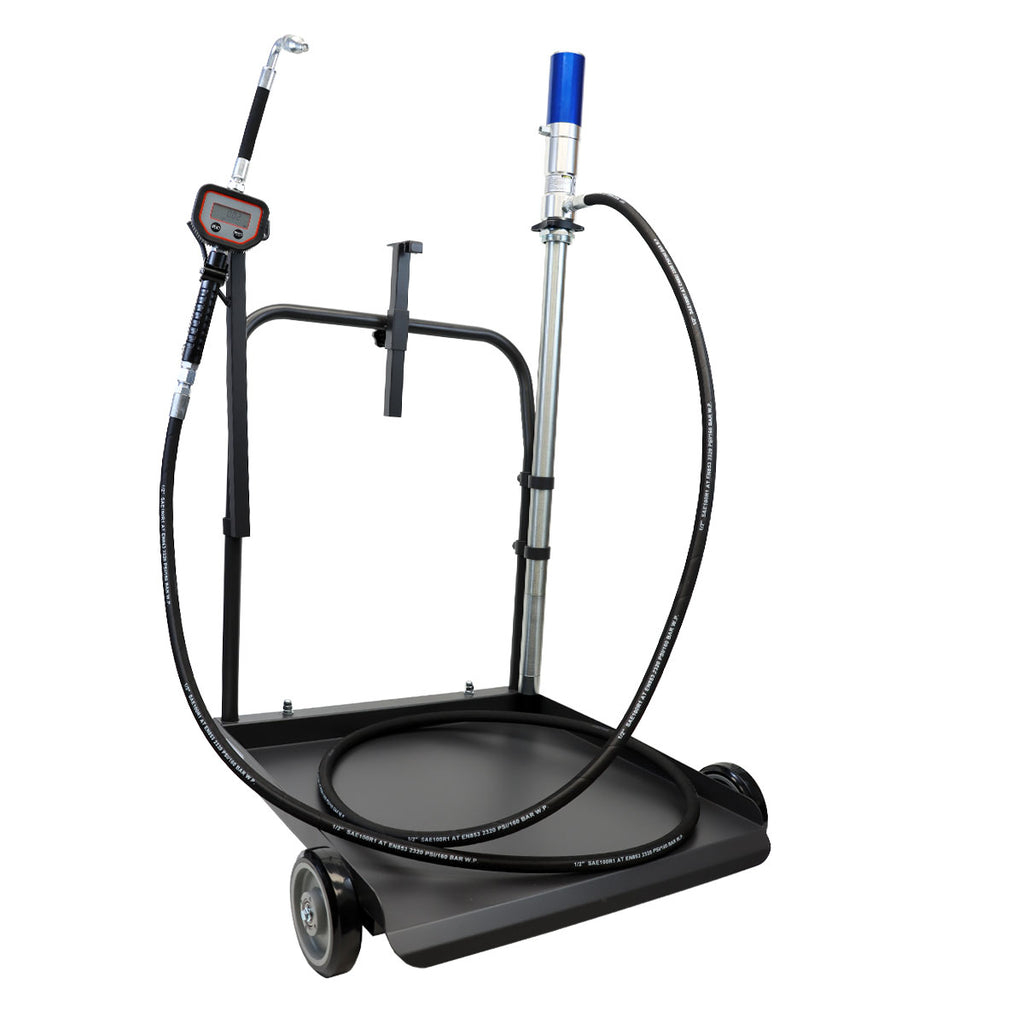

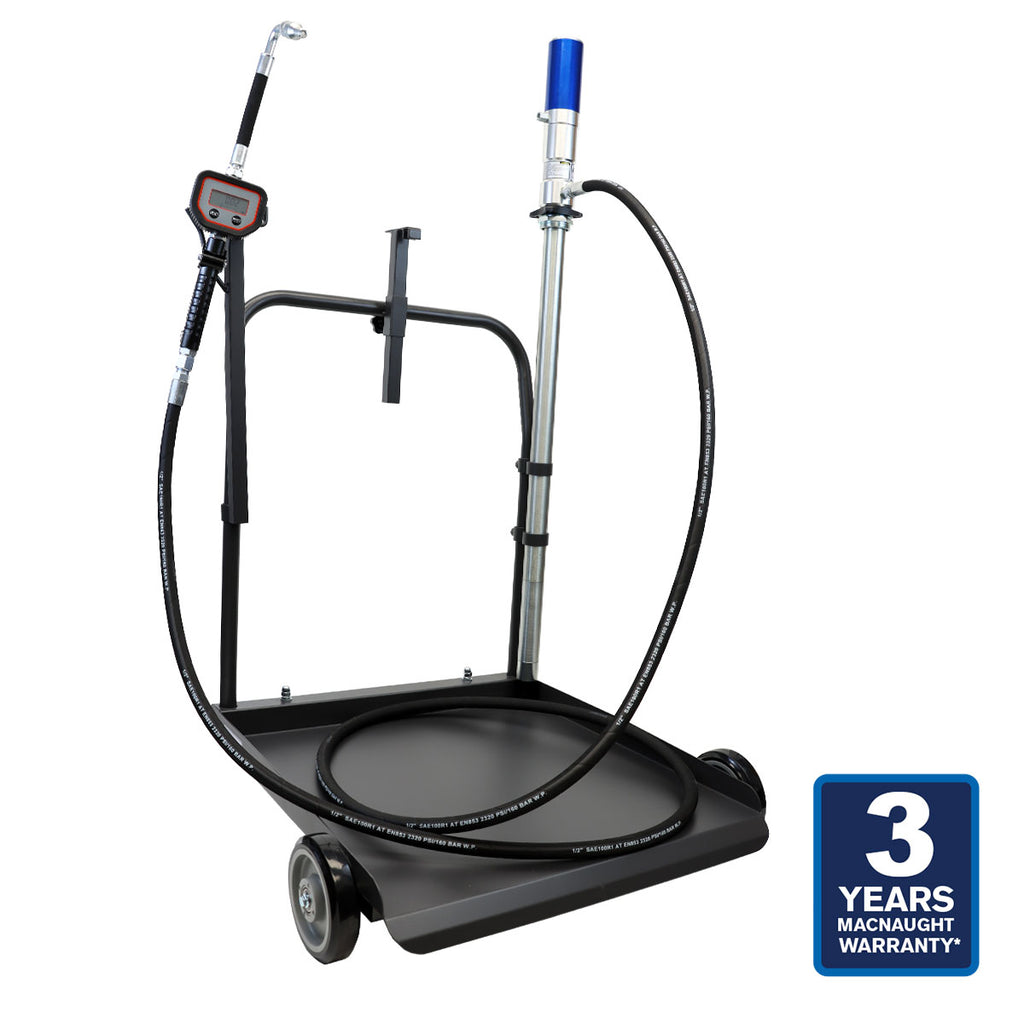

Macnaught M3 Mobile 3:1 High Flow Oil Dispensing Kit
| PUMP SPECS |
DIGITAL OIL CONTROL GUN SPECS
|
TROLLEY SPECS
|
Heavy Duty Rated 3:1 Oil Pump
|
Registers: Quarts, Pints, Gallons, Liters
|
Heavy Duty Design
|
Air Inlet Operating Pressure: 30-150 PSI / 207-1034 Kpa
|
Flow Range: .3 - 9.25 GPM / 1.1-35 LPM
|
48 - 58 Gallon
|
Air Motor Diameter: 2.5"
|
Max Pressure: 1500 PSI / 10342 kPa
|
Drum, Pump, Gun Holder Included
|
Air Consumption / Min: 3.6 CFM at 150 PSI
|
Measures all grades of Oils, Coolant & ATF at .5%
|
Front Swivel Casters
|
Max Fluid Pressure 450 PSI / 31032 kPa
|
Flexible 90 degree Spout w Auto Nozzle
|
|
Free Flow GPM / LPM: 5.28 GPM / 11 LPM
|
Inlet: 1/2" FNPT
|
|
Suction Tube Diameter: 1 5/8"
|
|
|
Suction Tube Length: 37"
|
|
|
Adjustable 2" Bung Adapter
|
|
|
Air Inlet Connection: 1/4" FNPT
|
|
|
Oil Outlet Connection: 1/2" MNPT
|
|
|
Hose: SAE 100R1 2320 PSI 13ft x 1/2" SS Female Swivel
|
|
|
Macnaught’s 3:1 Mobile Oil Dispensing Kit data sheet
Instruction Manual: PDF
Features & Benefits:
• Double Acting, Highly Efficient & Light Weight
• Suitable for all oils up to SAE 140W
• Waste Oil, Coolant and ATF compatible
• Each M3 Oil Pump comes with Suction Tube & Filter
• Adjustable 2 inch Bung Adapter
• Minimal Internal Pump Component Design
• 3 Year Warranty
Applications:
- Automotive
- Truck and buses
- Farming
- Constructions and Earthmoving
- Military
- Mining
- Aircraft
- Trains
