Macnaught MX Simple Safe Flow Meters

Macnaught Hazard Zone Overview

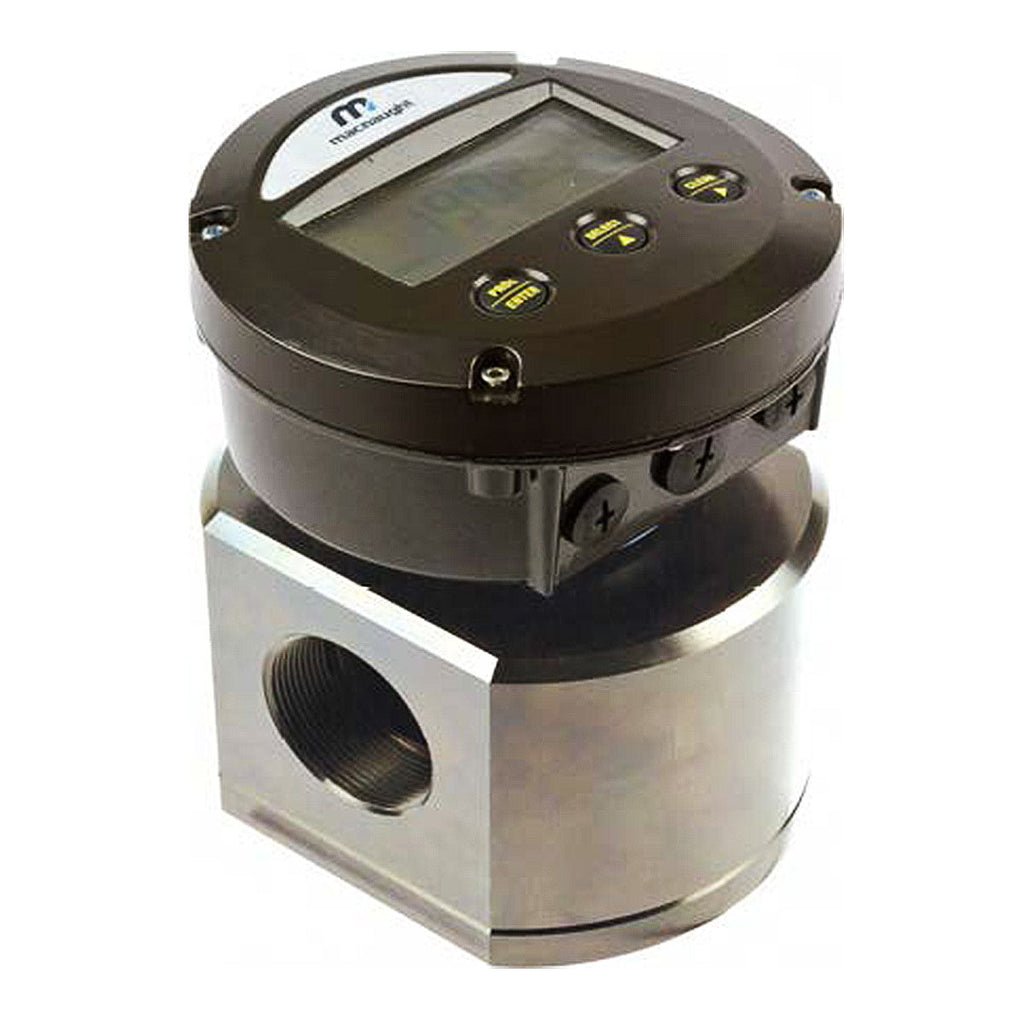

Macnaught MX ExD Simple Safe Flow Meters were designed, certified and approved for most fluid Hazard Zone Atmospheres.

Macnaught Hazard Meters are for clean process fluids and do not measure gases of fluids with solids. Clean Process Liquids only.

The MX Hazard Meter offering provides inline .5% Volumetric Accuracy with .03% Repeatability.

• In Stock Sizes ¼” thru 4” .13 GPH to 320+ GPM
• No Flow Conditioning - put the meter where you want it
• Large in-stock inventory of Hazard Meters and Displays
• Quick response to Hazard Meter inquiries

Receive an Immediate Flow Meter Proposal or Call our Meter Hotline - (813) 896-2710

NFPA 70 NEC Location Classes, Divisions, and Groups

Class I definition: Flammable gases or vapors may be present

Div 1 definition: Ignitable concentrations of hazards exist under normal operation and/or where the hazard Is caused by frequent maintenance or repair work or frequent equipment failure

Div 2 definition: Ignitable concentrations of hazards exist under abnormal operation conditions

Group A: Acetylene

Group B: Hydrogen, Butadiene, Ethylene, Oxide, Propylene Oxide, and Acrolein

Group C: Ethylene, Cyclopropane, Ethyl Ether

Group D: Acetone, Ammonia, Benzene, Butane, Ethanol, Gasoline, Hexane, Methane, Methanol, Naphtha, Natural Gas, Propane, and Toluene

Hazard Zone / Class FAQ

Q: Can I use a piece of equipment approved for use in a Division 1 hazardous location in a Division 2 hazardous location?
A: Yes. If equipment has been approved for use in a Division 1 hazardous location, it can be used in a Division 2 hazardous location, providing it is in the same class and group.
Q: Can equipment approved for a Class I hazardous location be used in a Class II hazardous location?
A: No. Equipment approved for use in Class I hazardous locations cannot be used in Class II hazardous locations.
Q: Are Divisions and Zones equivalent to one another?
A: When comparing Divisions and Zones, Division 2 is equivalent to Zone 2, but Division 1 is equivalent to either Zone 0 or 1

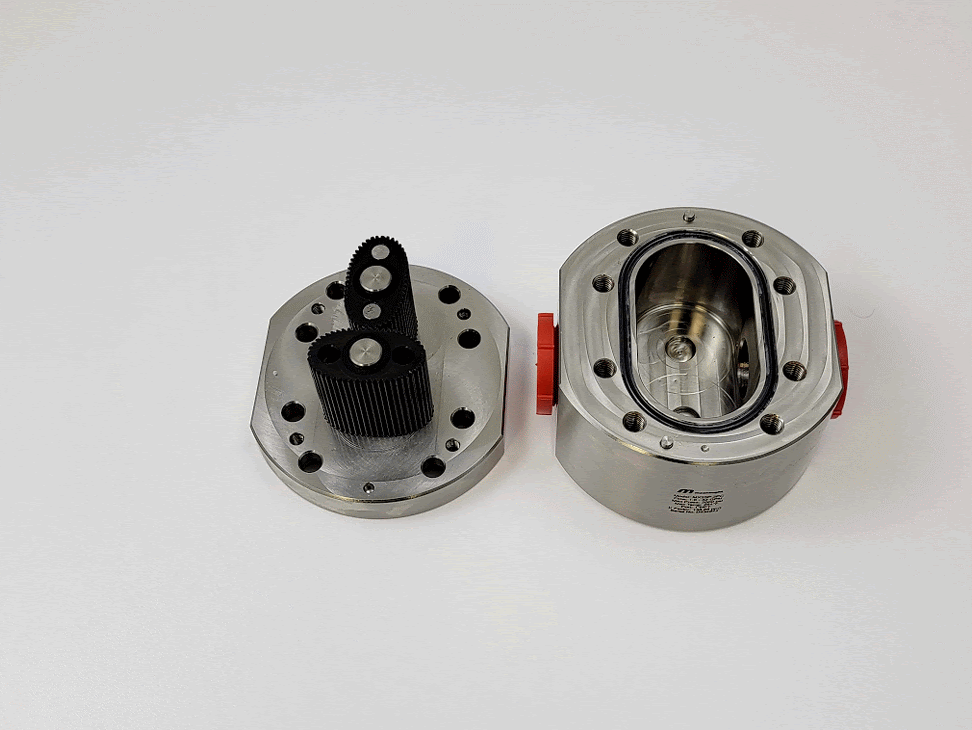

Contact Macnaught USA for approved Hazard Zone Liquid Flow Meters – the leading global manufacturer of specialized Oval Gear & Turbine Flow Measurement Devices.

Receive an Immediate Flow Meter Proposal or Call our Meter Hotline - (813) 896-2710

Simple Safe Quick Specs / Downloads

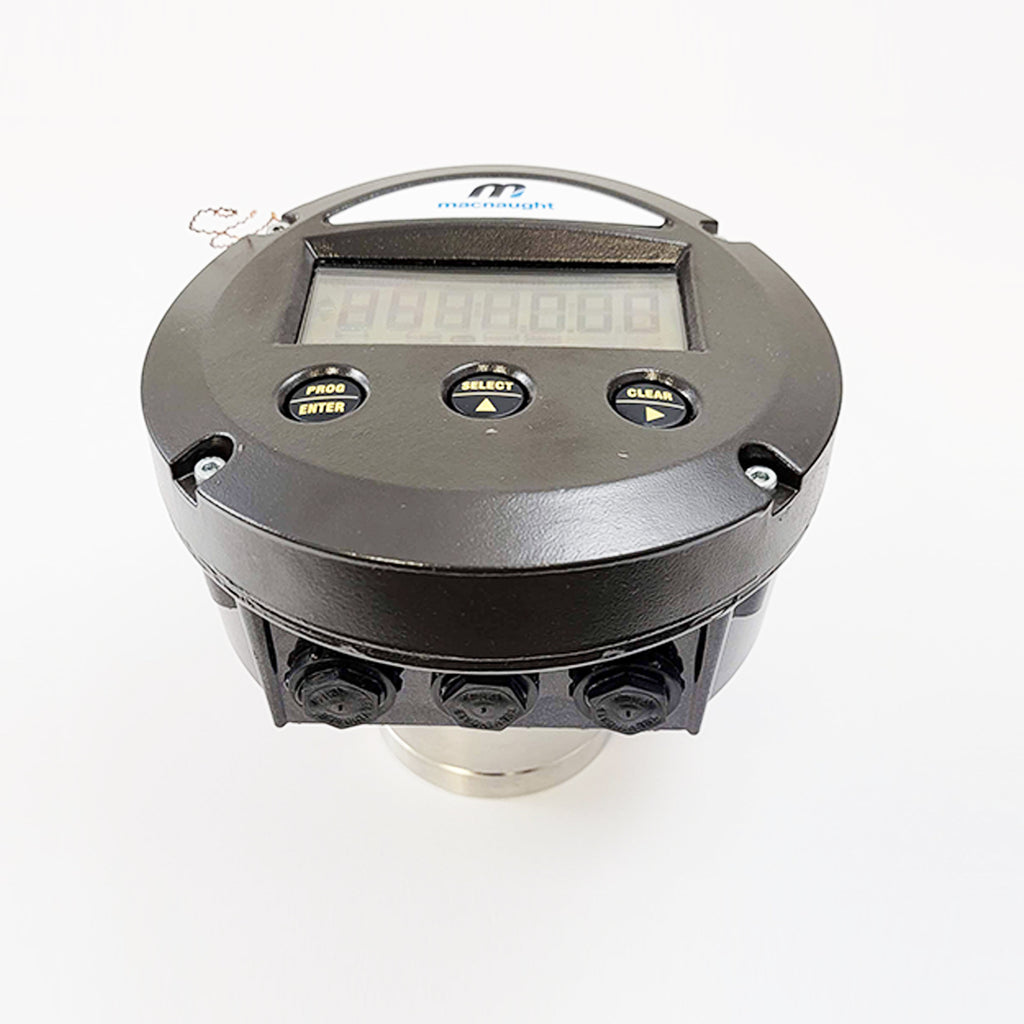

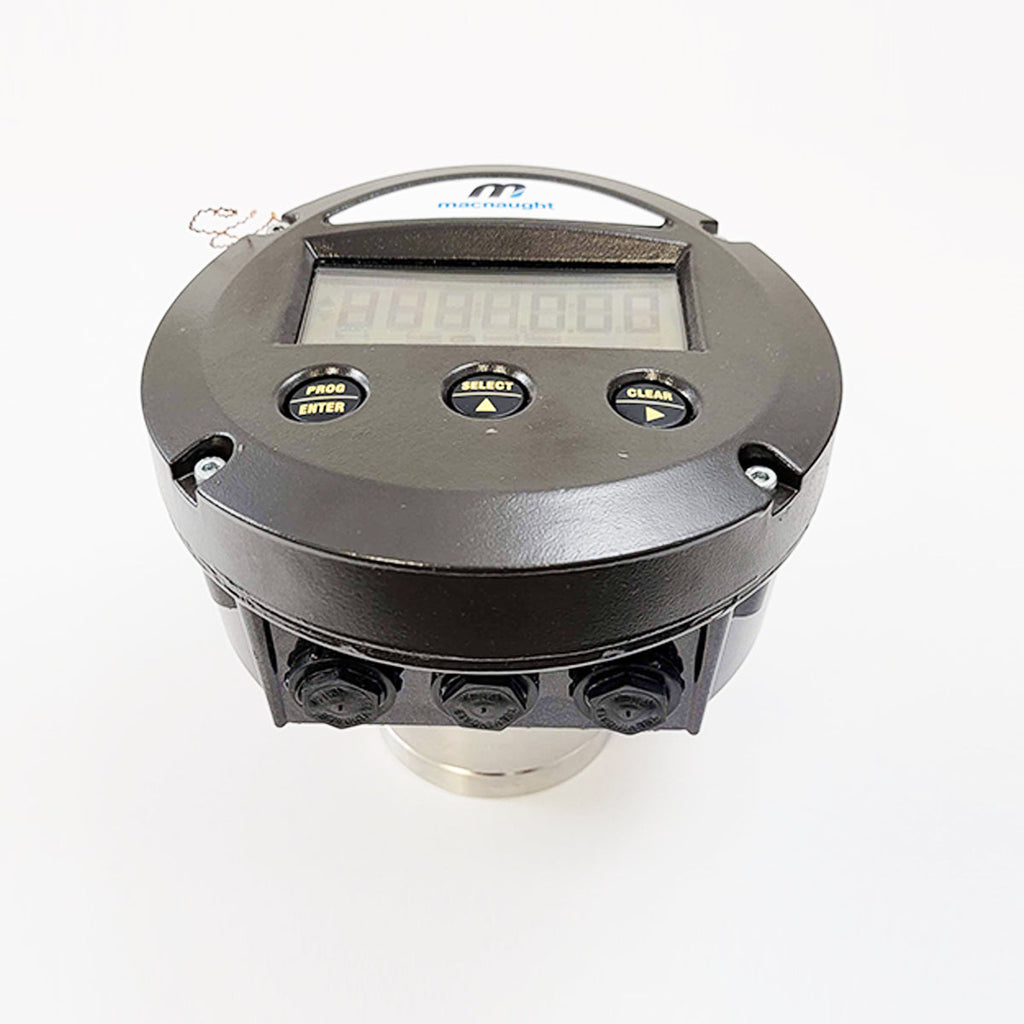

Macnaught MX Meters outfitted with Simple Apparatus PCB Intrinsically Safe Flow Meters and Displays meet all major Global Ex ia

The Simple Safe PCB module is designed according to IEC 60079-0:2018 and IEC 60079-11:2012. It is completely passive, adds no energy to the circuits connected, and complies with the applicable clauses for Simple Apparatus (per IEC 60079-11) when used in conjunction with the Intrinsically Safe display. Both reed switch input circuits of the MX1R-IS module, are suitable for use as simple apparatus in type of protection intrinsic safety Ex ia IIC.

Our Simple Safe Offering comes in three levels of performance:

Fx = Meter with Integral Mount Display, no outputs: No Power Required. This model is stocked in Tampa. The unit requires no Power and will show Rate and Total with a Resettable Totalizer and a Non-Resettable totalizer.

Important: Safety Barrier is provided by others

Entity Parameters to size Barrier should the Display need optional 16-30VDC Power: Uo Max 30VDC, Io Max 200mA, Po Max 1.2W

Gx = Meter with Integral Mount Display with (1) 4-20mA and (1) Pules Output – available contact Macnaught USA

Hx = Meter with Integral Mount Display for single stage batching – available contact Macnaught USA

MX Simple Safe Manual > Download PDF
MX Simple Safe Product Announcement > Page Link
MX Simple Safe Part Numbering > Download PDF

Macnaught MX ExD Quick Specifications
