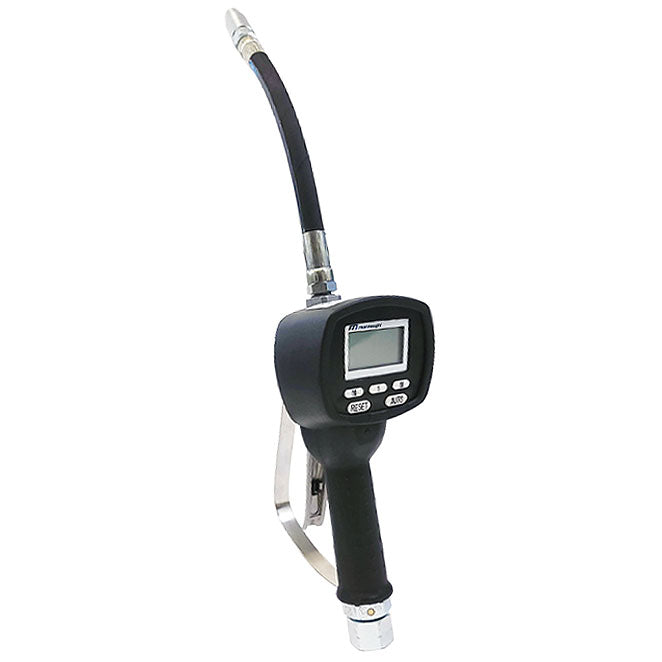

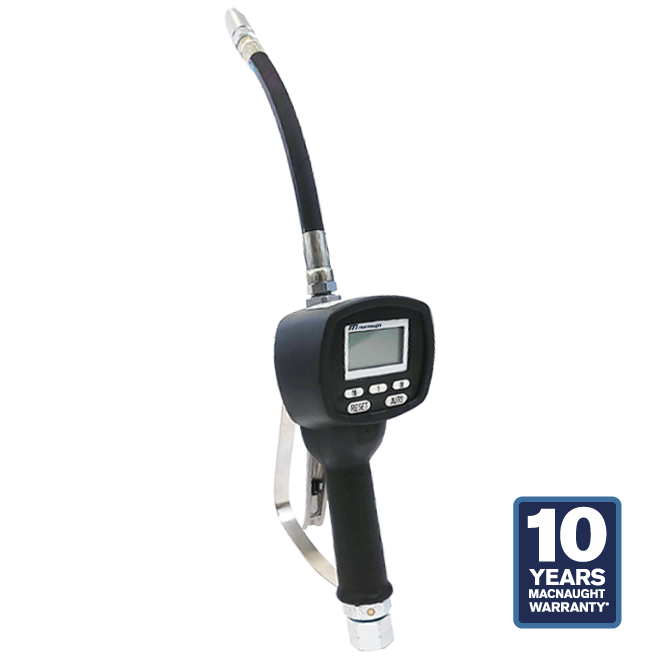

Metered Oil Control Gun, Electronic Preset w/Auto shutoff, Black shroud, fully flexible ext., trigger guard, non-drip auto nozzle, 1/2″ NPT inlet.
Macnaught offers the HG60F-02 Electronic Preset oil control gun with flexible extension. Features include locking trigger and non-drip nozzle, resettable batch total and a non-resettable total. The meter accuracy is +/- 0.5% of reading, working pressures up to 1500psi (10,350kPa) and flow rates up to 8 gpm / 30 lpm. Easy to use preset function with five programmable settings. Used for oil, ATF, and antifreeze up to a maximum viscosity of SAE 140. All Macnaught oil control guns come with a fully supported 10-Year Warranty!
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02
Macnaught Metered Control Gun Specifications
| Model number |
HG60F-02 |
| Flow Range |
0.26-8gal(1-30L)/min |
| Inlet Swivel |
1/2″ NPT (F) |
| Meter |
oval gear / digital |
| Meter Accuracy |
+/-.05% (lube oils) |
| Features |
Five programmable preset quantities with Auto Shutoff
Pre-settable to 1999.9 ltrs.
Auto Shutoff
5-digit resettable batch totalizer
6-digit accumulative totalizer
sleep mode to conserve battery life
EEPROM information retention
for battery change
|
| Extension |
flexible |
| Non drip nozzle |
automatic |
| Latching Trigger |
√ |
| Fully Serviceable |
√ |
Warranty
|
10 years |
Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF
Features & Benefits:
- Oval gear digital meter
- Digital meter or Electronic meter +/- 0.5 %
- Can store 5 preset quantities.
- 5-digit resettable batch totalizer
- 6-digit accumulative totalizer
- Auto Non-Drip Nozzle
- Flexible extension
- 1/2"NPT swivel inlet
- Trigger lock
- Fully serviceable
Value Proposition:
- Accurate control and measurement of oil usage.
- Easy to operate accurate pre-settable gun with 5 storable presets.
Package Includes:
- Gun complete with flexible extension and automatic nozzle
